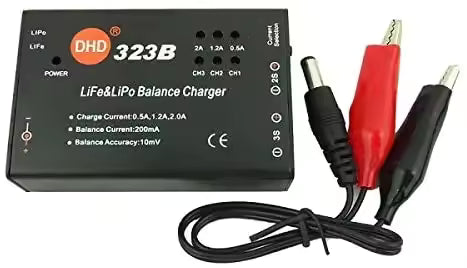

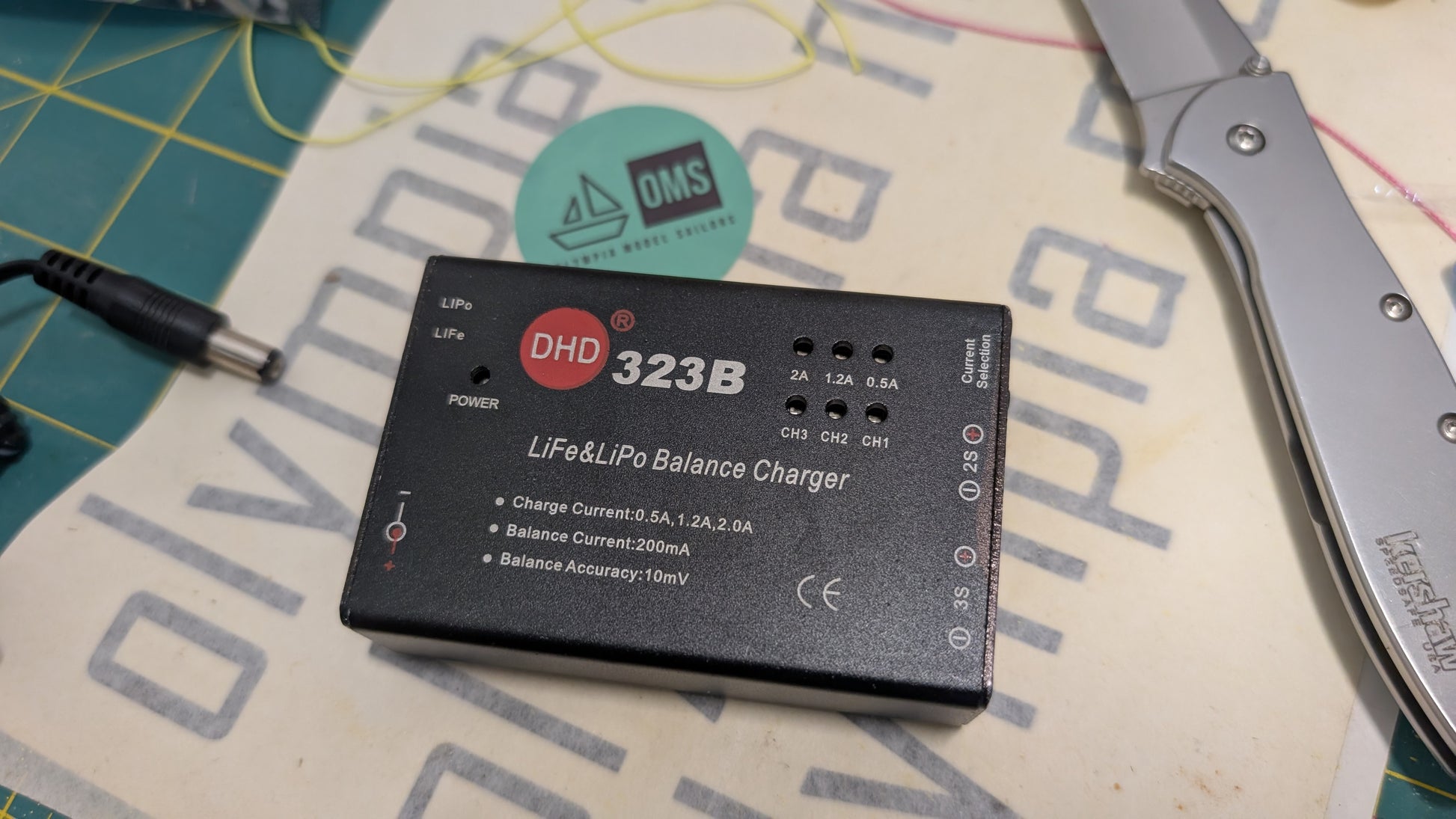

DHD 323B Intelligent Balance Charger for 2-3s

works for LiFe and Lipo at the flip of a switch

Needs to be run from a DC power source

DHD 323B Intelligent Balance Charger for 2-3s Lipo


Input voltage: DC 11.0-16.0V
Input Current: 2.5A @ MAX (recommended to use 12 / 2A power supply)
Single full battery voltage:polymer lithium ion battery --4.20V ± 0.01V; lithium-iron battery -3.6V ± 0.015V

Three charge current:0.5A 1.2A, 2.0A
Input undervoltage protection: <= 10.0V
Input overvoltage protection:> = 18.0V

Size:10.8x7.5x2.5cm


Tips of LED:
Charger indication: charging current position indicator (3 LED), single balanced / charging indicator (3 LED), power indicator (1 LED)
Power On Self Test Tip: traffic lights on whilst a second, then goes off;
Standby: LED is off
Charging status: red lights
Full status: green lights
Output short circuit or reverse status: Indicator turns red and blinks
Equilibrium: three lights flashing
