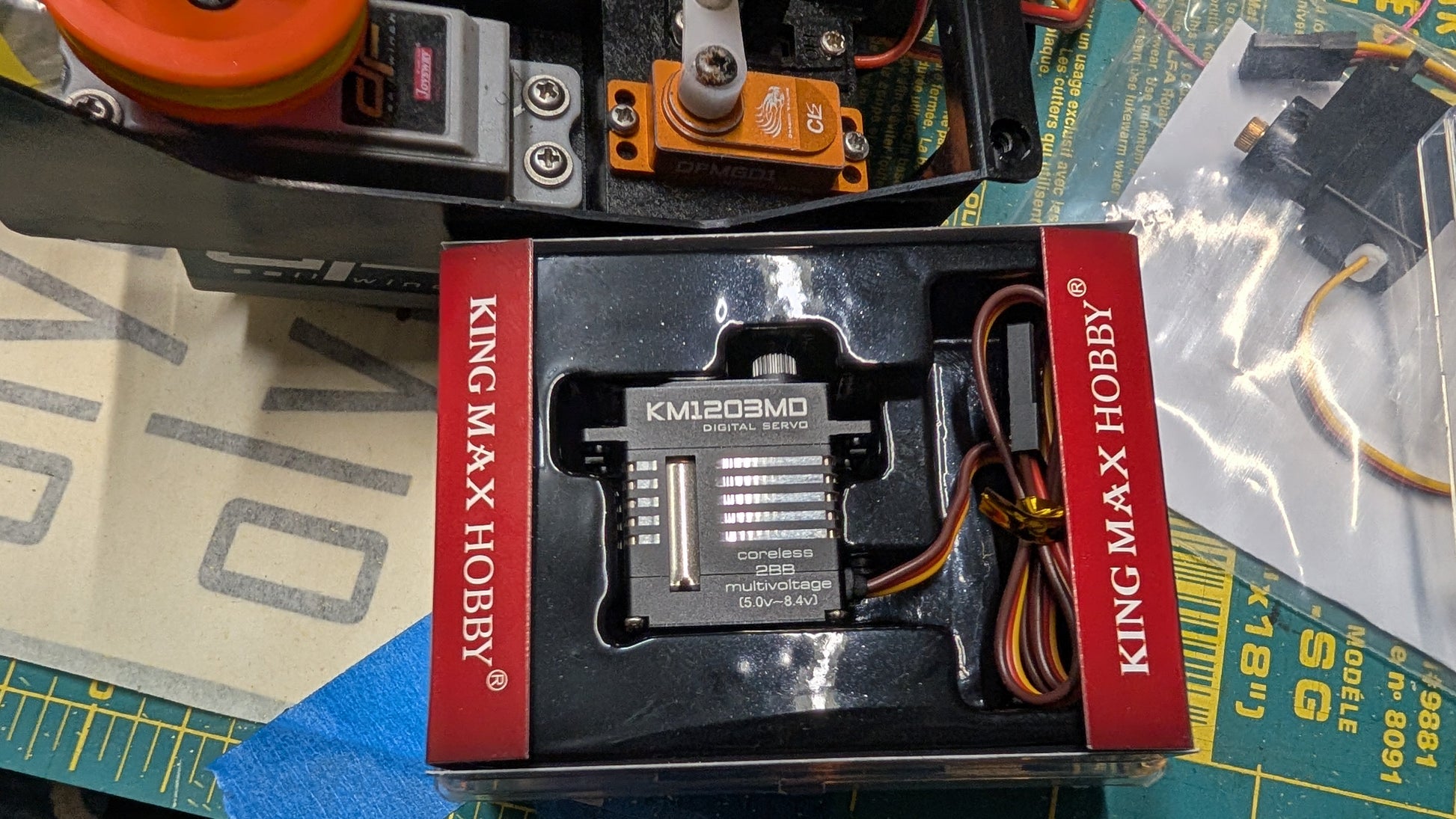

DF65/95 Digital metal gear rudder servo Kingmax KM1203MD

DF65/95 Digital metal gear rudder servo Kingmax KM1203MD

$37.00 USD
$37.00 USD
Sale Sold out
Shipping calculated at checkout.

fits DF95 & DF65

FEATURES:

 -- High performance metal gears(copper+titanium) mini digital servo
 -- High quality coreless motor
 -- Full CNC aluminium case
 -- Dual ball bearings
 -- Low Power Consumption
 -- Ultra-Long Life

SPECIFICATIONS:
Operating Speed (5.0V): 0.14 sec/60 degrees at no load
Operating Speed (6.0V): 0.11 sec/60 degrees at no load
Operating Speed (7.4V): 0.08 sec/60 degrees at no load
Operating Speed (8.4V): 0.07sec/60 degrees at no load
Stall Torque (5.0V): 6.0 kg.cm (102.78 oz/in)
Stall Torque (6.0V): 7.4 kg.cm (102.78 oz/in)
Stall Torque (7.4V): 9.5 kg.cm (131.95 oz/in)
Stall Torque (8.4V): 10.5 kg.cm (145.81 oz/in)
Potentiometer Drive: Direct Drive
Dimensions: 23 X 12 X 27.5 mm / 0.91 X 0.47 X 1.07 in
Weight: 20.3 g (0.72oz)
Connector: JR
Wire Length: 220 mm (8.58in)
